DRAG SPROCKETS
Find the solution that best fits your application

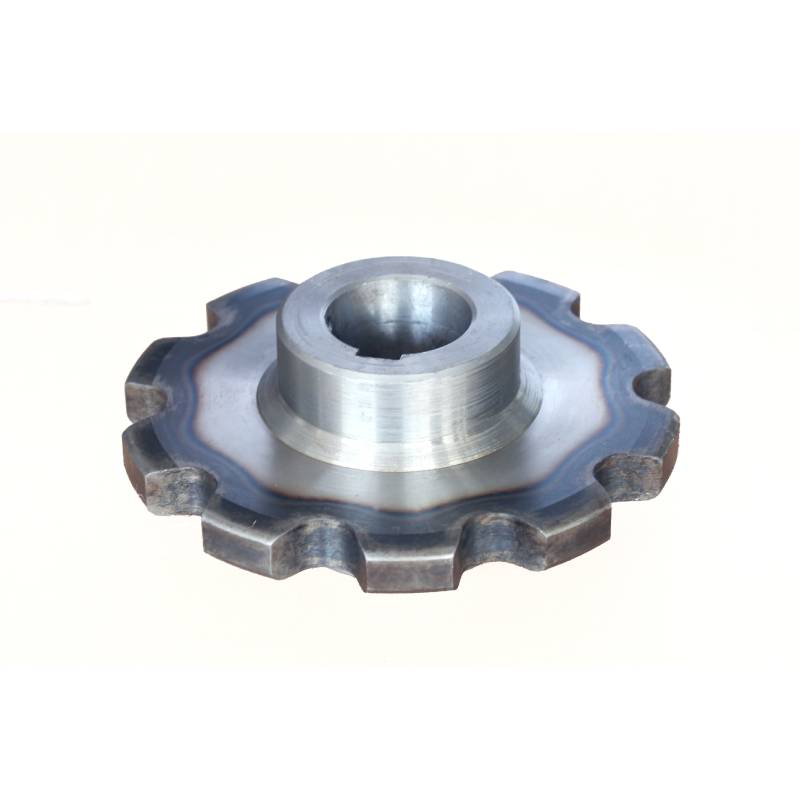

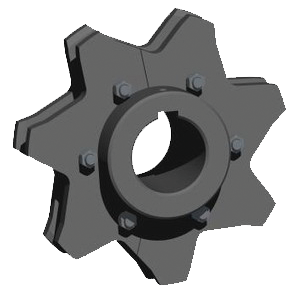

Drag Sprockets
Our Product
Prime MFG’s Drag Sprockets are manufactured to deliver precision engagement with drag chains, ensuring efficient power transmission and minimal chain wear. Made from premium materials and hardened for durability, our sprockets are ideal for use in drag conveyor systems across industries like mining, agriculture, biomass, and cement. Each sprocket is crafted for optimal fit, performance, and long service life under demanding operating conditions
FEATURE
- Machined tooth profiles for accurate chain engagement and reduced chain wear
- Available in hardened steel, cast iron, or custom materials
- Standard and custom bore options to fit your drive configuration
- Designed for compatibility with forged chains and drag link conveyors
- Resistant to abrasion, deformation, and fatigue
- Manufactured to OEM standards for easy replacement and integration
- Suitable for harsh environments including high-temperature and dusty conditions
Why Choose
High-Strength Materials
Crafted from cast steel, ductile iron, or alloy steel for maximum durability in high-load environments
Precision Machining
Each sprocket tooth is precisely machined to match chain profiles and reduce wear over long-term use
Custom Bore Options
Available with plain, keyed, or keyed-with-set-screw bores to match your conveyor shaft specifications
Heat-Treated Surface
Surface-hardened for enhanced resistance to abrasion and deformation, especially in dusty or abrasive conditions
Chain Compatibility
Designed to work seamlessly with drop forged, drag link, and round link chains in bulk material handling
OEM Ready Design
Engineered to fit standard OEM chain conveyors for fast, easy replacements and minimal downtime
Specifications

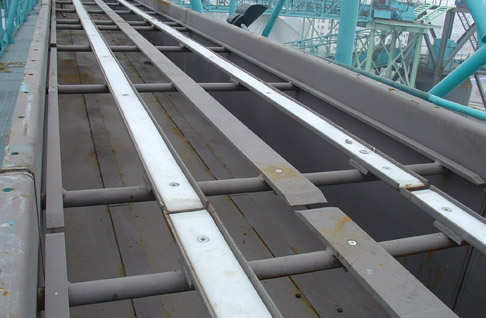

Guide Rail
Customized from UHMWPE sheet with abrasion-resistant, low friction and wear & noise reduction features.

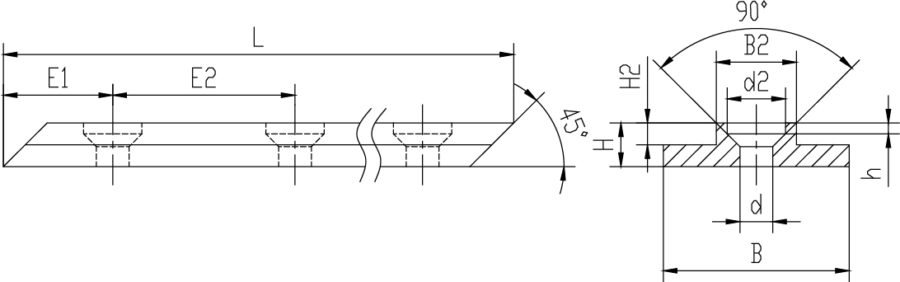

Example of one guide rail design.
